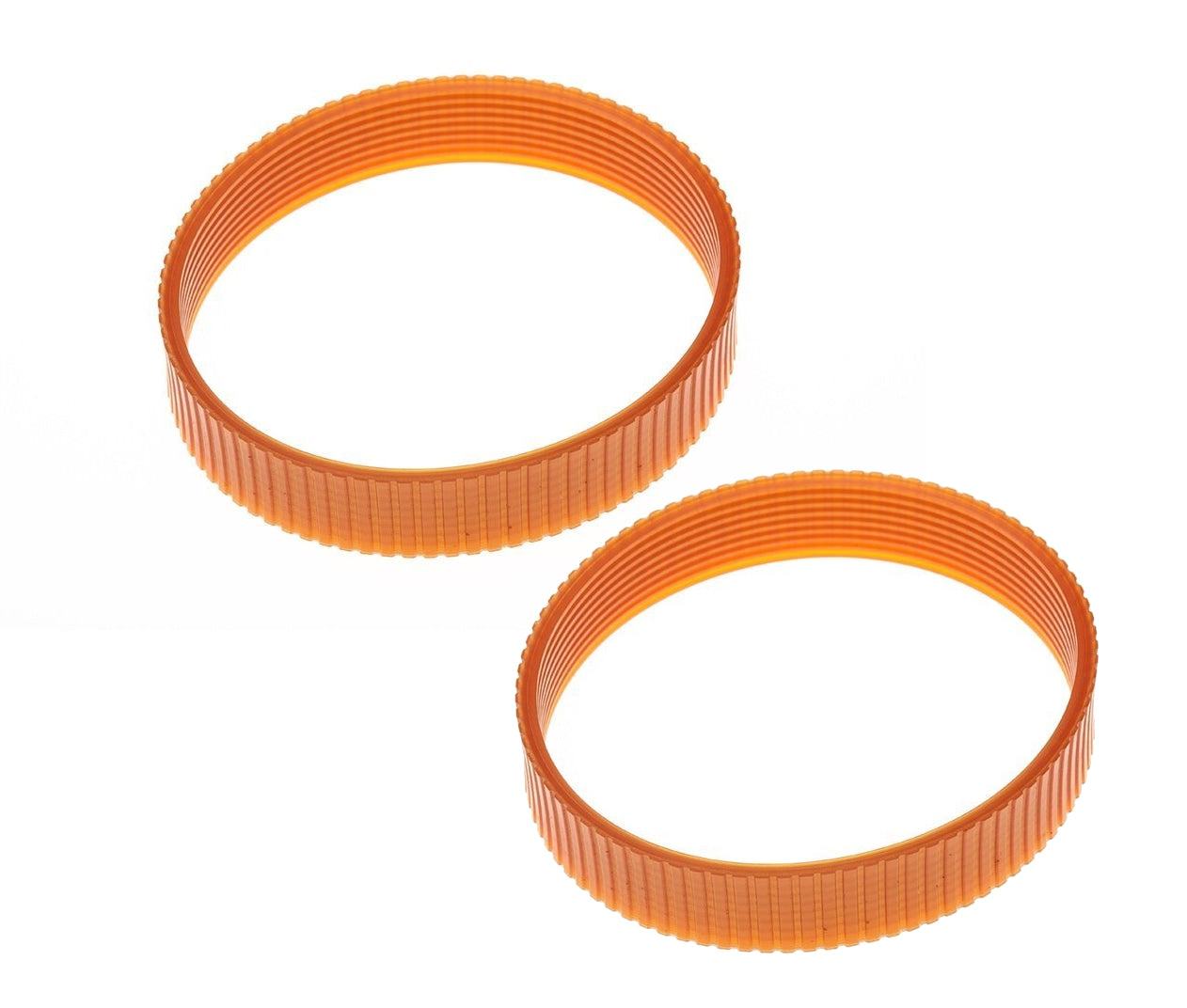

Replacement Planer Drive Belt 5140010-28 for DeWalt DW735 DW735X Planer
- Replacement Drive Belt for DeWalt DW735 DW735X Planer
- Replacement Toothed Belt 5140010-28
- Inspect belts periodically and replace when worn to maintain peak performance, Clean the pulleys off before putting the new belt on to ensure top performance and longevity with your new belt.
- Please proper installation
- Package with 2Pack
This part is used on both Black and Decker and DeWalt DW735, DW735X models
Dimensions: Belt with 9 Ribs
Clean the pulleys off before putting the new belt on to ensure top performance and longevity with your new belt.
Inspect belts periodically and replace when worn to maintain peak performance
Please proper installation
Replace DeWalt Planer DW735 DW735X Belt Guide
First part is just like changing blades, remove the top and the dust shoot. Then remove the thickness adjusting wheel and then the cover behind it. Inside the planner on the opposite side of the belt there is a safety switch, it looks like an L bracket with slotted holes, cut a 2 inch block of wood to hold it up so the blades can turn.
Then I removed the chain, one screw on each sprocket, then I removed the chain tensioner, one screw. Then I removed the small access cover over the small pulley, just turn the screw quarter turn and remove.
Now the new part. Put the belt over the small pulley, and then got the belt started on the bottom of the big pulley. Then I took my mini needled nosed vice grips and pinched the belt to the pulley, not hard, I did not want to damage the belt. Then I took a socket and turned the nut at the center of the pulley and the belt went right on. Easy Peazy. Of course it was not completely on I just put some inward pressure on the belt in front of the pulley and kept turning the nut and it worked its way on. I then noticed that it was hanging off the small pulley a little bit. Same thing, some inward pressure in front of the small pulley and keep turning the socket. Reverse the steps and put it back together.
Anyway, here are the links to the eReplacementParts.com page
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
CA PROP 65 WARNING
BE CAREFUL. Always wear eye and ear protection along with dust masks. Avoid using blades, bits while in loose clothing. Keep hands, body, clothing and hair away from the cutter. Do not remove safety guards, and be sure to always feed against the cutter rotation. Never use dull or damaged cutters. Disconnect power when changing blades or making adjustments, and always leave the power disconnected when not in use. Follow all safety recommendations of the power tool manufacturer. FOXBC Company assumes no responsibility for defects, damage, or injury (direct or indirect) caused by misuse, abuse, alteration or modification
of any product (including sharpening).
WARNING: Re-grinding of FOXBC products will produce dust of potentially hazardous ingredients. Always read and follow owner’s safety manual of all power machinery before using bits. Always use eye protection while using this or any carbide cutting product.
WARNING: FOXBC products can expose you to chemicals including lead and/or cobalt, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
WARNING: Drilling, sanding or machining wood products can expose you to wood dust, a ubstance known to the State of California to cause cancer. Avoid inhaling wood dust or use a mask or other safeguards for personal protection. For more information go to http://www.P65Warnings.ca.gov.
