Magnetic Knife Setter for Planers & Jointers.
Jointer & Planer Knife Height Setting Jig, Planer Knife Setter Gage
Set planer knives quickly and accurately with these magnetized setting jigs. The jig holds knives tightly in position while both hands are free to adjust the gibs and cutter head.
Universal knife setter.
- Keeps knives in perfect alignment while setting.
- Fits planer knives from 12" to 26".
- Leaves hands free to adjust gibs and cutter head
Keep knives in perfect alignment with micro adjustable to 0.001-Inch
Keep fingers safely from razor-sharp cutter blades
Allow for hands-free adjusting of gib and cutterhead
Save you time, hassle and effort
Come as a pair, in a wooden box
Best Planer/Jointer Knife Setting Jigs gauge hold both Planer and Jointer knives quickly, accurately and securely with innovative, industry grade, magnetized setting jigs. This setting jig's revolutionary design holds the knife in firm alignment for hands-free adjusting and tightening, allowing for a higher level of safety, efficiency and workmanship. The jigs keep knives in perfect alignment with micro adjustable to 0.001-Inch. Come as a pair, in a wooden box.
- Highly accurate planer blade vernier setting jigs
- Magnetic feet to attach to the cutter block and hold the blade
- Blades held securely to allow easy locking into place
- Swivel feet accommodate block diameters from 75-125mm
- Micrometer adjustable accuracy with lockable settings
MAGNETIC SETTING DEVICE FOR PLANER BLADES
For Charnwood Planer Knife Setting Jig Set
Magnetic Planer Knife Setting Gauge - The best knives won't perform well unless they are
properly set and aligned. The built-in permanent magnets grip both the planer block and
the knives while you use the integral adjustments to get the knives into perfect position
- adjustable in 0.1mm increments.
1. Magnetic ceramic stop
2. Joints with magnetic connectors
3. Precision depth stop with 0.1mm increments

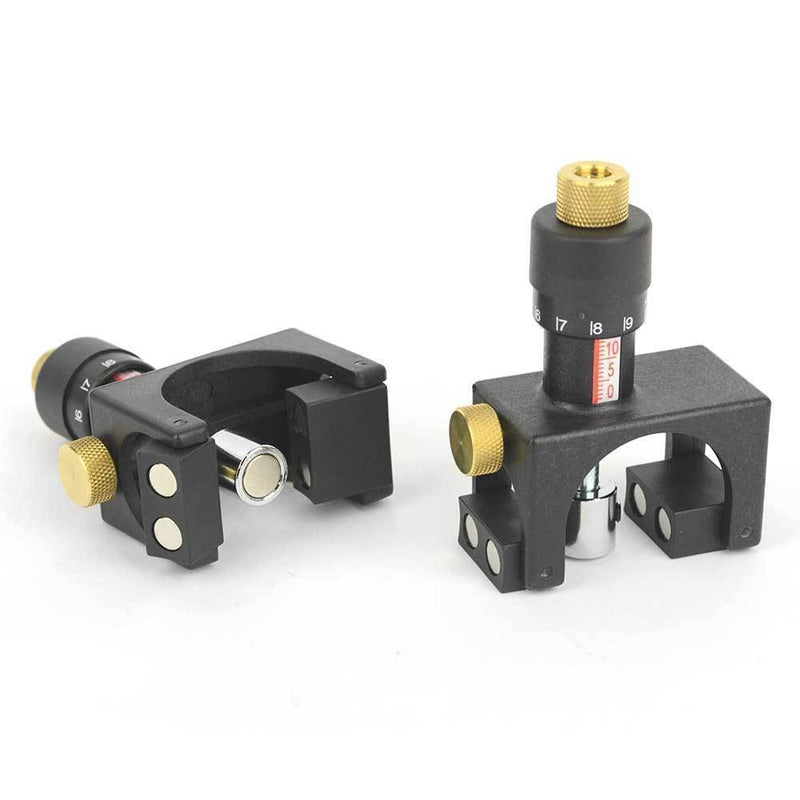

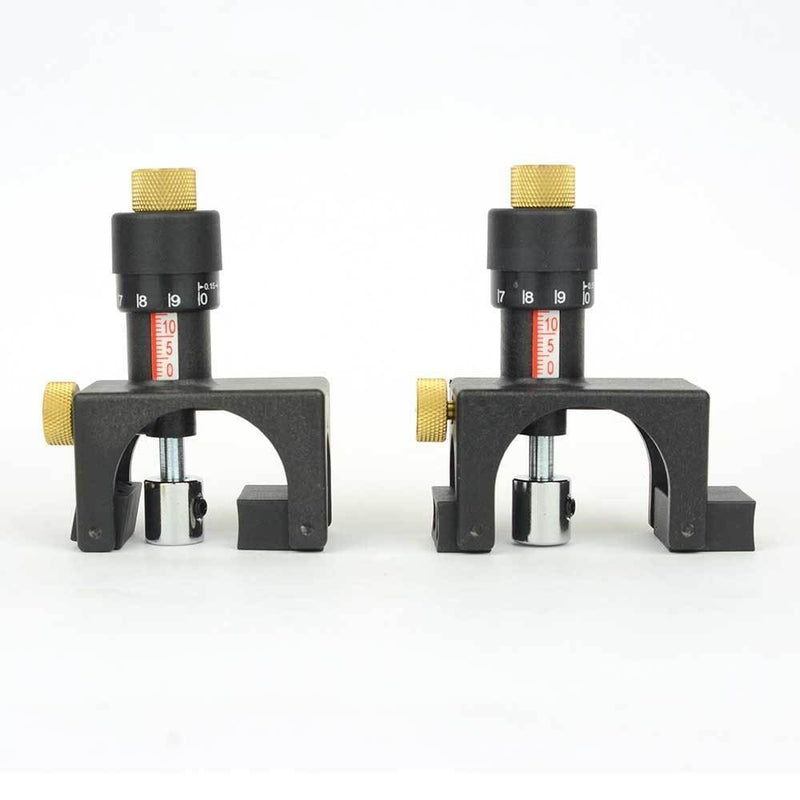

The set is supplied in a wooden box with 2
setters Three options for setting of knives: Positioning onto the toolholder body with
marking onto the original knife; Positioning onto the toolholder body setting with one of
the supplied gauges; Positioning directly onto the machine table and the tool holder body.
This planer thicknesser knife setting jig set offers a simplified and fast method to set the height of the cutting knives after sharpening or change them. The jigs can be used with most planers, thicknessers or combination machines with open access to the cutterblock.
Please note - this jig cannot be used with machines with fixed aluminium tables as these are not magnetic.
When refitting planer knives, it is most important that they are re-set and fitted correctly.
Each blade must protrude from the cutterblock by the same amount to give a clean cut, otherwise they will cause an imbalance and a vibration which could damage the machine and will also result in an uneven cut.

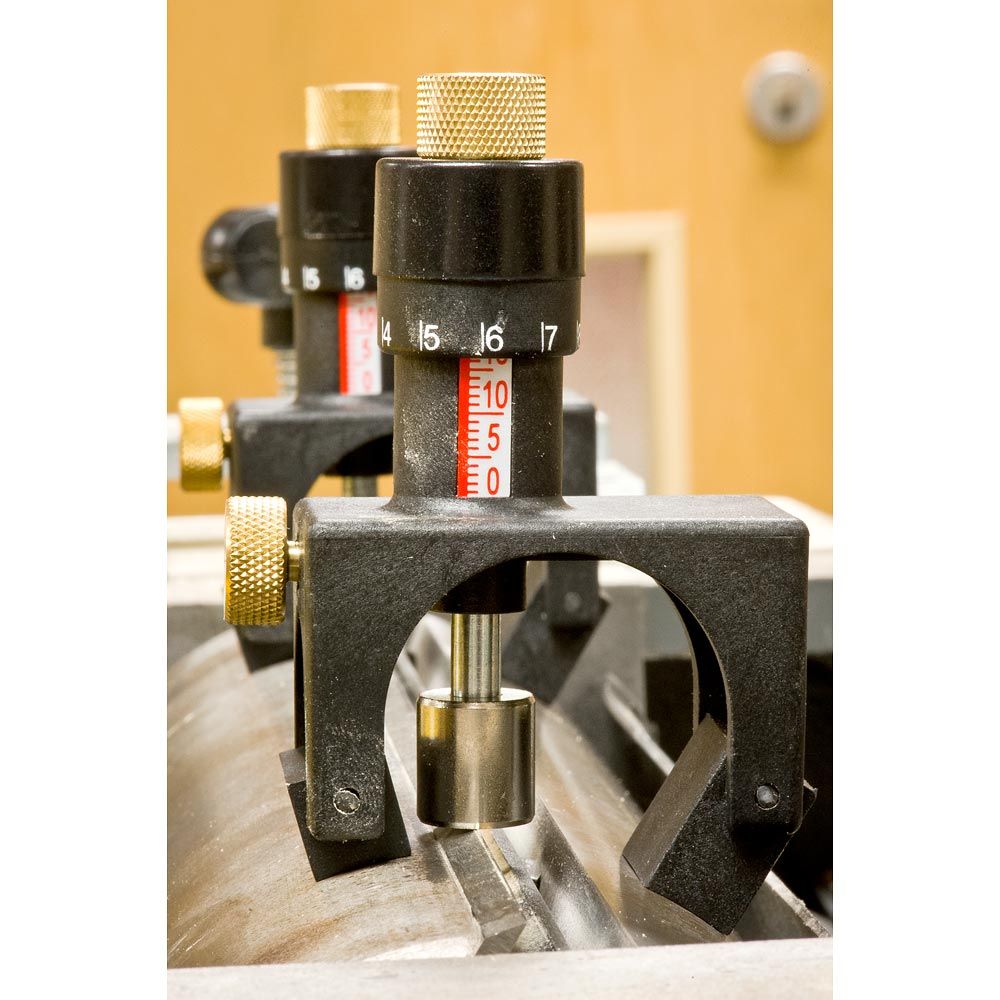

These jigs are fitted with strong magnets which will clamp it to the cutterblock.

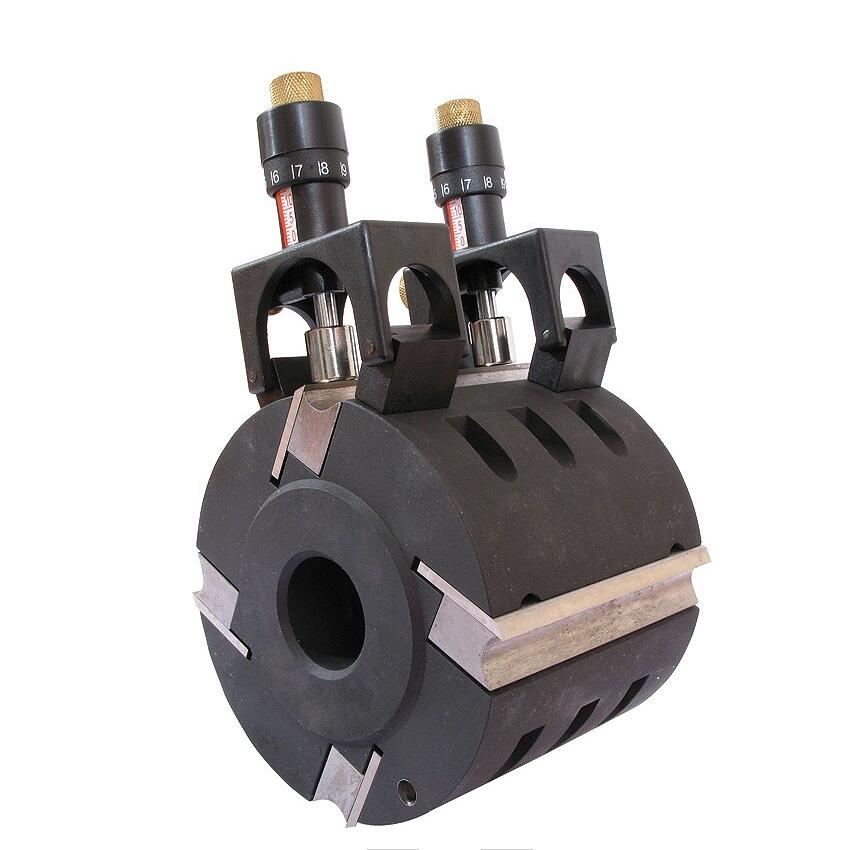

The feet swivel to account for different diameter cutterblocks.
The knife itself is held onto another magnet which is height adjustable.
The height can be set extremely finely with graduations down to 0.15mm.

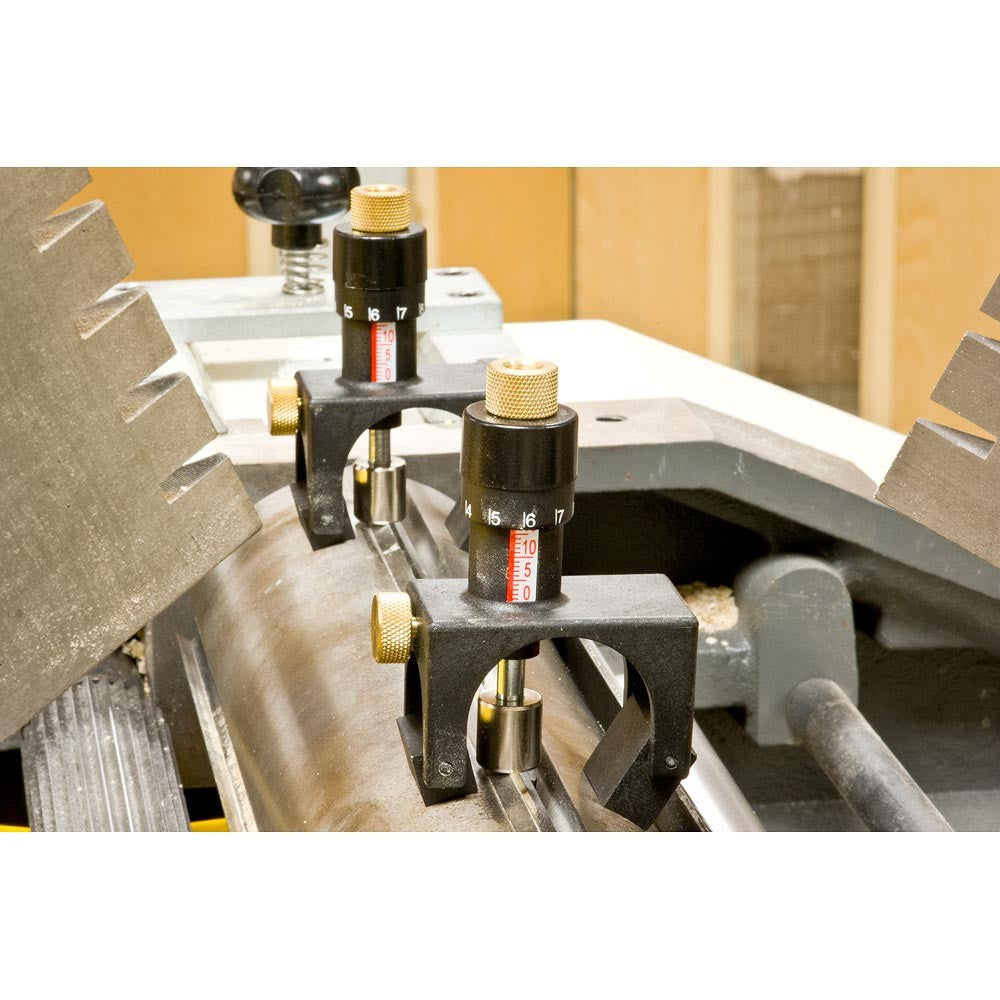

With the knife loose in the block ensure both setting jigs read the same, then lock the blades into the block and repeat for the other knives.
Once the jigs are set and locked to the exact setting for your machine, the setting will be saved for future fitting of new or re-ground knives.
Summary Features / Specifications:
Minimum Cutterblock Diameter: 75mm
Maximum Cutterblock Diameter: 125mm
Number Of Knives: 2-4
Height Adjustment: 22mm (Approx 7/8" ;)
Increments Of Adjustment: 0.15mm (0.0059")
Excellent Setting device suitable for all makes and models of Surface Planers, Jointers, Thicknessers and Combination Planer/Thicknessers
These magnetic blades setting jigs delivered in a practical wooden box.
The knife projection can be exactly set due to the adjustable stops 0.1mm adjustments.
The device has been designed with permanent magnets which adheres to the cutter block or the planer table and not the knife, so that both hands are free for setting and tightening the knives.
The setting devices don't need to be held down
High Setting Acuracy ensuring perfect blade alignment and Surface Finish.
Time Saving Device when mounting and setting planer blades
